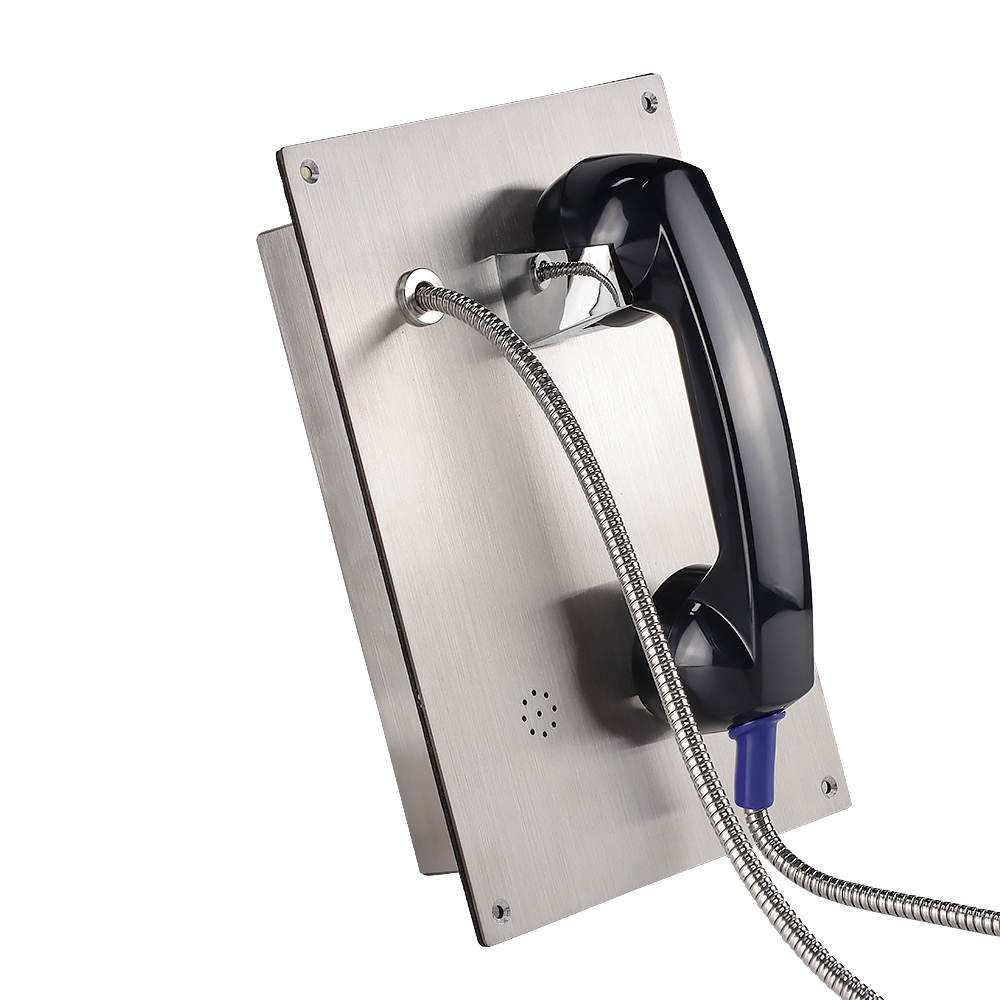

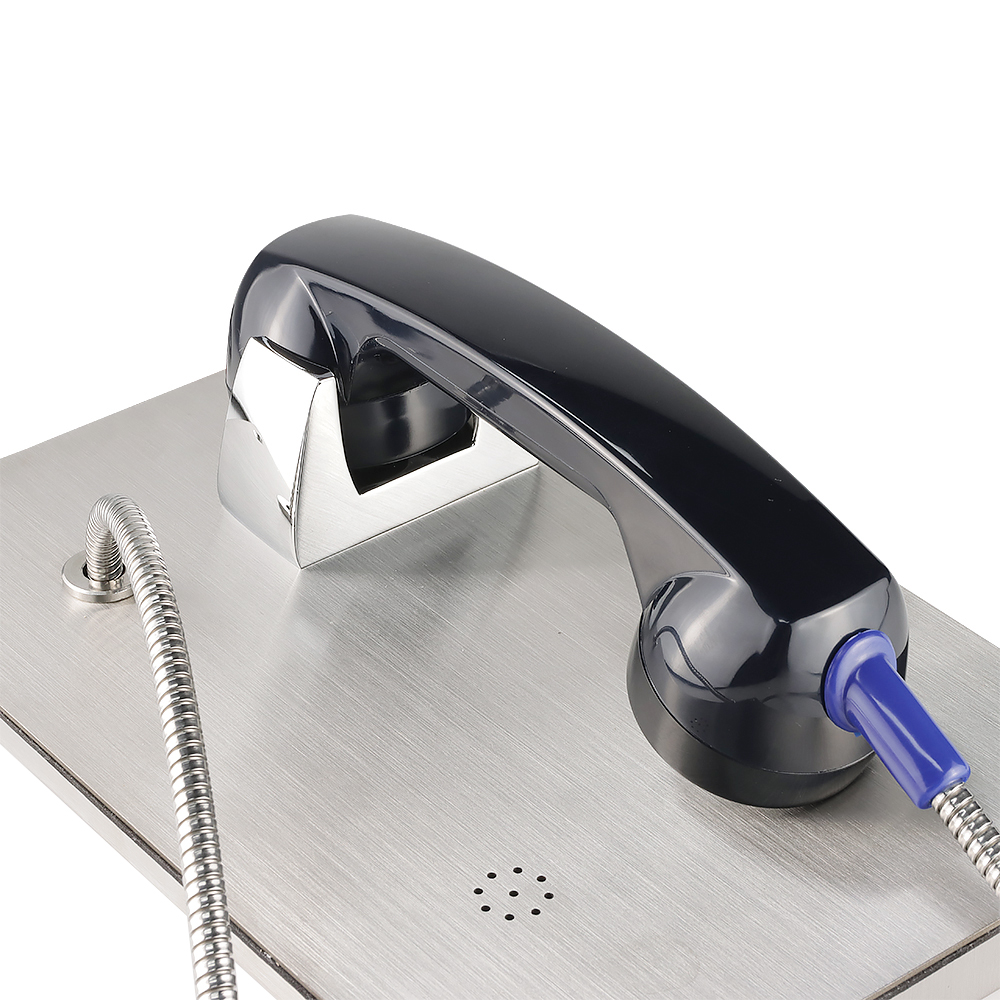

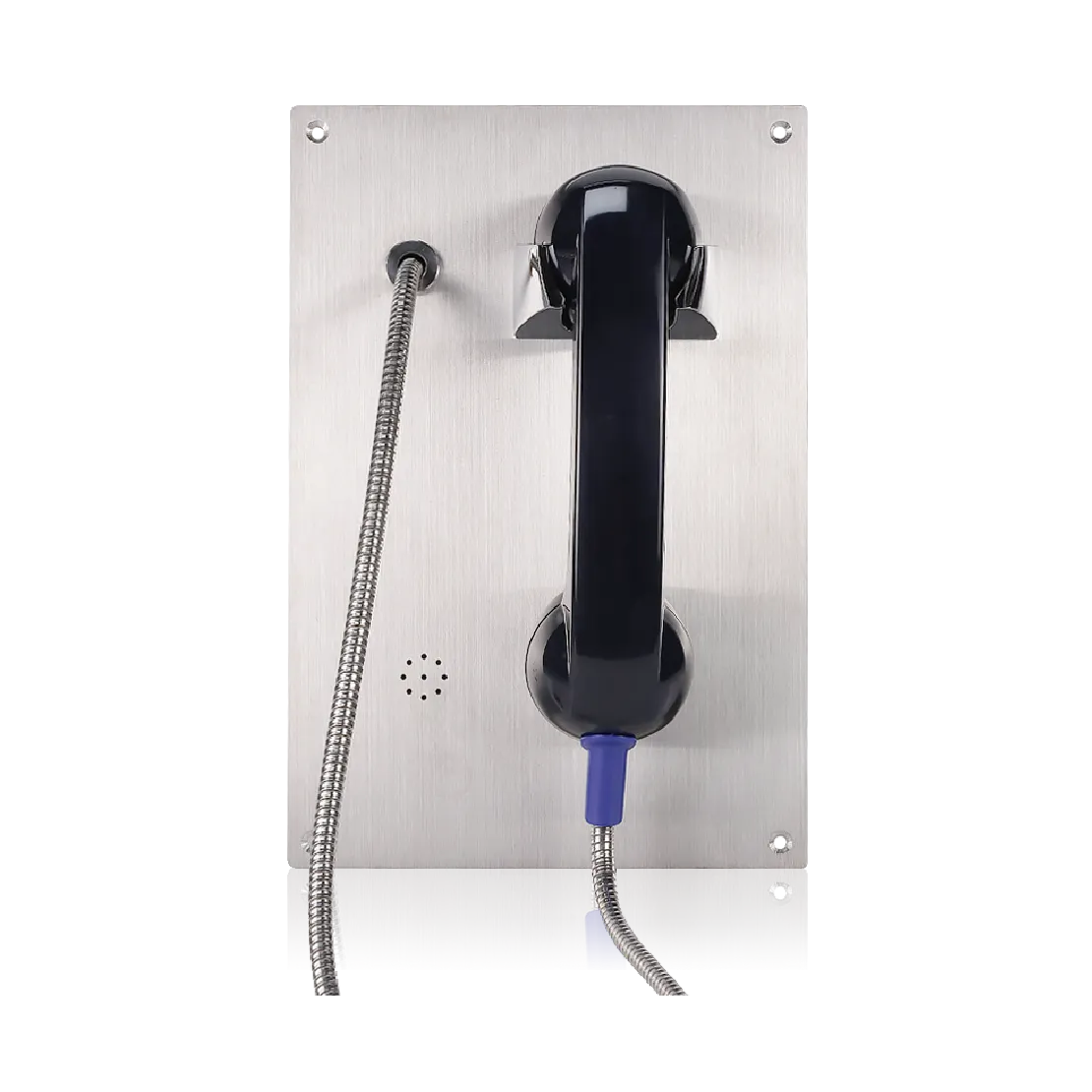

IP65 Vandalproof Telephone for Bank, Parking Lots, Prisons, Railway/Metro, Pospitals

Hotline Handset Telephone JR208-CB-SIP

Robust housing, constructed of brushed stainless steel
Protection level IP65
Advanced noise reduction technology for HD calls
Corrosion-resistant hardware
CE, FCC, RoHS, IK10, IP65, ISO9001 standards

Get Pricing/info Download

Main Features

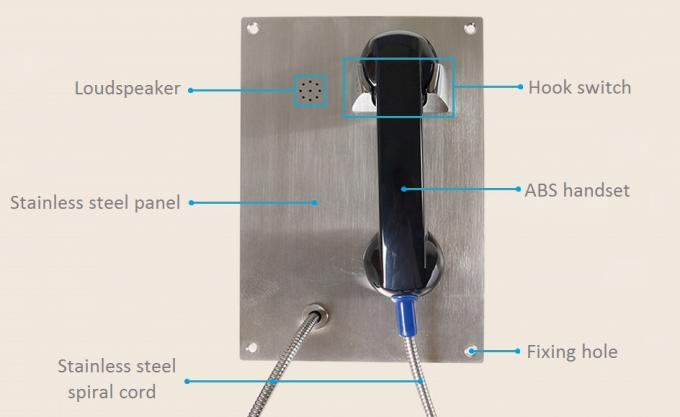

Vandal Resistant Telephone JR208-CB

Item Description

Hotline telephone without keypad
ABS material handset with noise-cancelling microphone and 83 cm armored cord
The handset supports hearing aid compatibility (HAC)
Magnetic reed hook-switch
Flush mounting, simple installation

IP65 Vandalproof Telephone for Bank, Parking Lots, Prisons, Railway/Metro, Pospitals

JR208-CB-SIP Vandalproof Telephone has a grounding device and is completely electrically isolated from the internal circuit, with a certain electromagnetic shielding effect, and the voice is clear and loud during the call, without whistling back. Armored "cord" provides additional resistance to vandalism or heavy industrial use.

Housed in a corrosion-resistant stainless steel/cold-rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communication is maintained at all times.

IP65 Vandalproof Telephone Applications

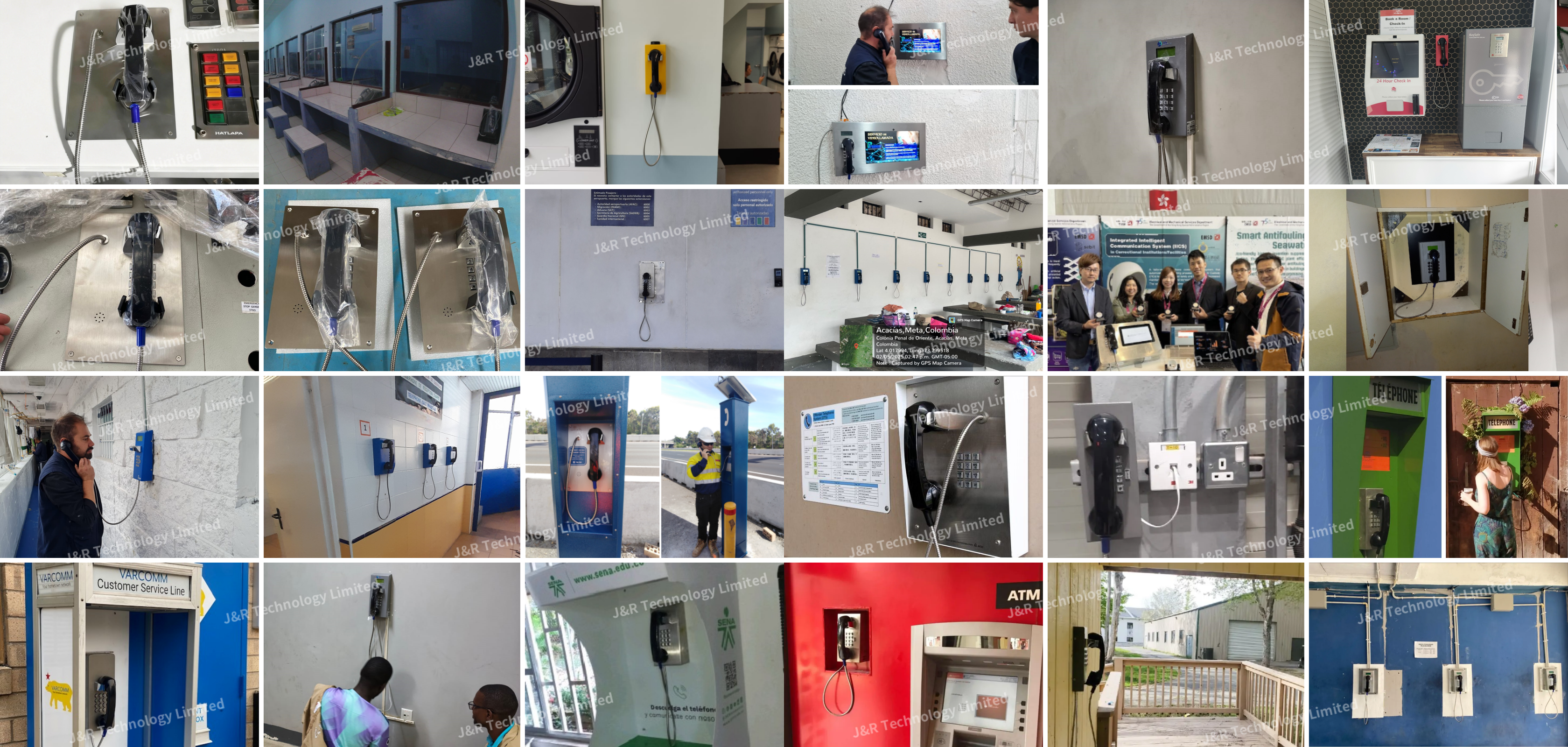

The series telephones are designed to meet the needs of clients who experience losses due to vandalism. Ideal for parking lots, prisons, airports, railway, metro, ATMs machines, platforms, hospitals, police stations, shopping mall, stadiums, etc.

Robust & Durable Construction

Brushed stainless steel housing with IP65/IK10 ratings, corrosion-resistant hardware and armored cord for vandal/industrial use resistance.

High-Performance Voice & Call Quality

HD call support via advanced noise reduction, G.168 echo cancellation, HAC-compatible handset and 90~95dB loud ringing volume.

Flexible & Reliable SIP Connectivity

SIP 2.0 compliance, PoE/12V DC dual power, primary/backup server auto-switch and compatibility with most SIP-based IP-PBX servers.

Wide Environmental Adaptability

Extreme temperature operation (-40°C to 65°C) and storage (-40°C to 75°C), MTBF over 50,000 hours for stable long-term use.

Applications

IP telephony system is an efficient and convenient communication solution that uses Internet connection to implement voice calls and other communication services. Compared with traditional telephone systems, IP telephone system has higher efficiency and conve- nience.

JR208-CB-SIP APPLICATIONS

Product Video

Technical Specifications

SIP Specifications
Power supply	PoE powered or 12V DC powered
Power adapter	100~240VAC 50~60Hz / 12V DC
Power consumption	Idle 1W / Working 2.4W
SIP protocol	SIP 2.0 (RFC3261)
Network port parameters	WAN Port: 10/100Base- T RJ-45 for LAN, Auto MDIX，LAN Port: 10/100Base- T RJ-45 for PC, Auto MDIX
Voice coders	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication mode	Full duplex
Ringing volume	90~95 dB (A) @ 1 meter
Technical Specifications
Compatible with most SIP-based IP-PBX servers that comply with SIP RFC 3261
PoE 802.3af enabled (Power-over-Ethernet) or alternate power source
PoE power supply, supports connecting the external loudspeakers (No external power supply needed)
Supports automatic dialing with delay after picking up the phone, and 4 groups of sequential calling
Supports automatic switching between primary and backup servers
Supports remote Telnet debugging
Supports two relays to remotely control external devices
Operating temperature -40˚C to 65˚C / Storage temperature -40°C to 75°C
M.T.B.F. exceeds 50,000 hours under normal operating conditions
Network Web Management
Fully configurable through any internet browser
Static IP address provisioning or DHCP support
Product self-diagnostic testing available through the web interface
Network-adjustable earpiece volume and microphone sensitivity
Firmware upload via web interface
Echo cancellation: Supports G.168, and hands-free can support 96ms
Supports SIP domain, SIP authentication (none, basic, MD5), and DNS name of server
DTMF: SIPINFO, INBAND, RFC2833
Dials Plan: Flexible dial-up configuration, support hotline
Network Features
WAN/LAN: Supports Bridge mode
Supports static IP address
Supports DHCP to obtain an IP adress on WAN port
Supports VLAN
Supports web config
Data Protocols: IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, ONVIF, SNMPv1, RTCP-XR, 802.1x, Static IP/DHCP IP Assignment,IEEE 802.1p/Q, QoS/ToS, HTTP/HTTPS/DHCP, NTP, FTP/TFTP, CDP/LLDP VLAN Configuration, LDAP
