IP67 Analogue Heavy Duty Outdoor Weatherproof Telephone

IP67 Analogue Heavy Duty Outdoor Weatherproof Telephone JR101-FK-AL

Aluminum alloy die-casting body
Protection level IP66/IP67
Advanced noise reduction technology for HD calls
Supports 10 groups of speed dialing
CE, FCC, RoHS, IK10, IP67, ISO9001 standards
Colors: Yellow, other colors to special order

Get Pricing/info Download

Main Features

Weatherproof Telephone JR101-FK

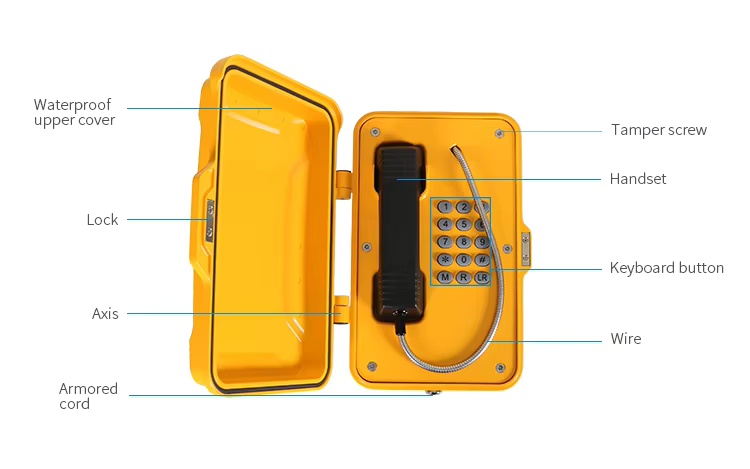

Item Description

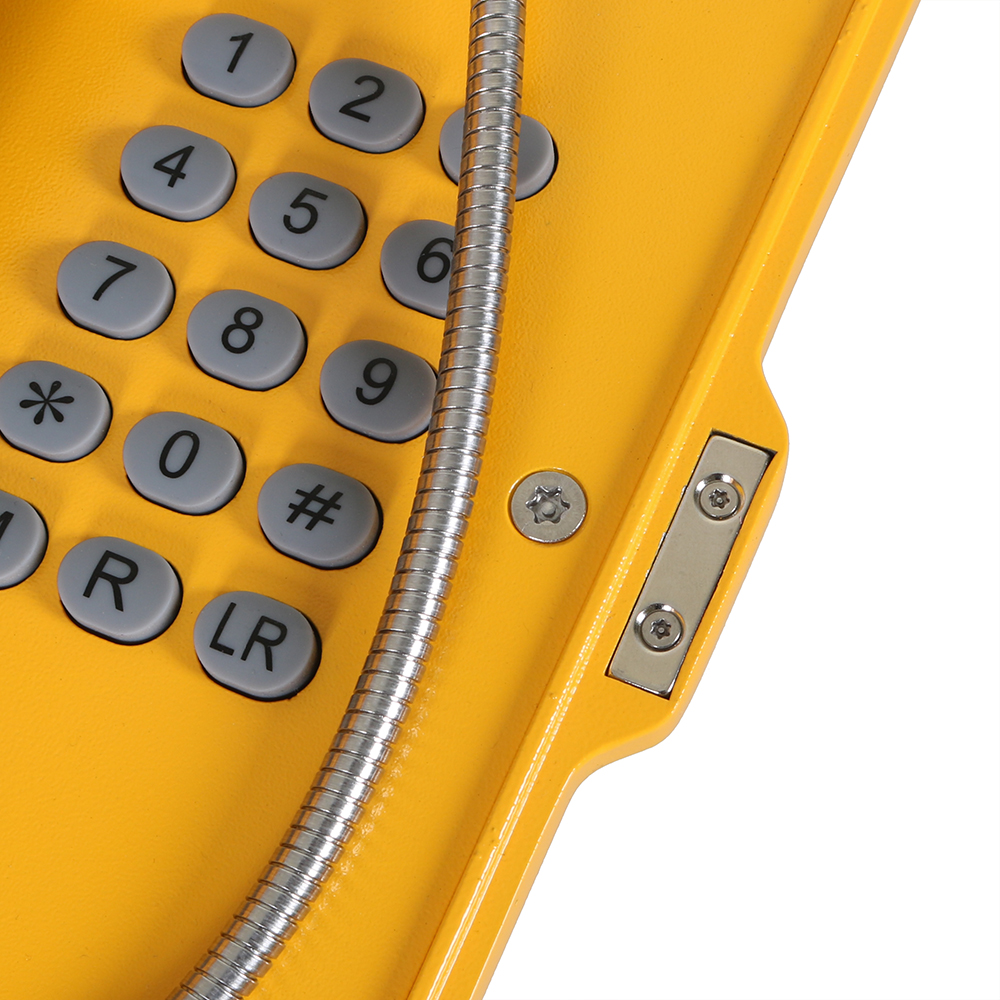

Full rubber keypad with memory, 0-9 buttons can be programmed as speed dial buttons
“M” for muting
“R” for flash recall
“LR” button for last number redial

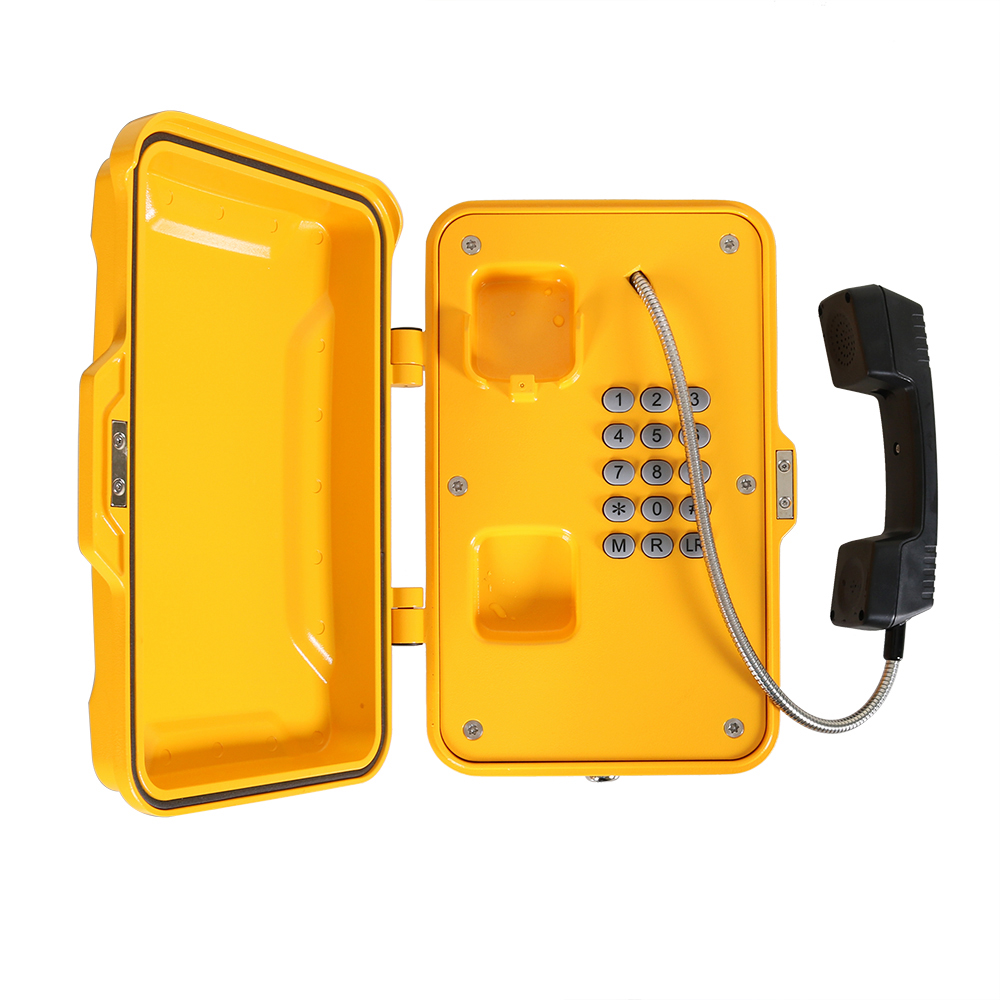

Handset with noise-cancelling microphone and 42 cm armored cord (optional heavy duty curly cord)
The handset supports hearing aid compatibility (HAC)
Magnetic reed hook switch to reduce wear-prone parts

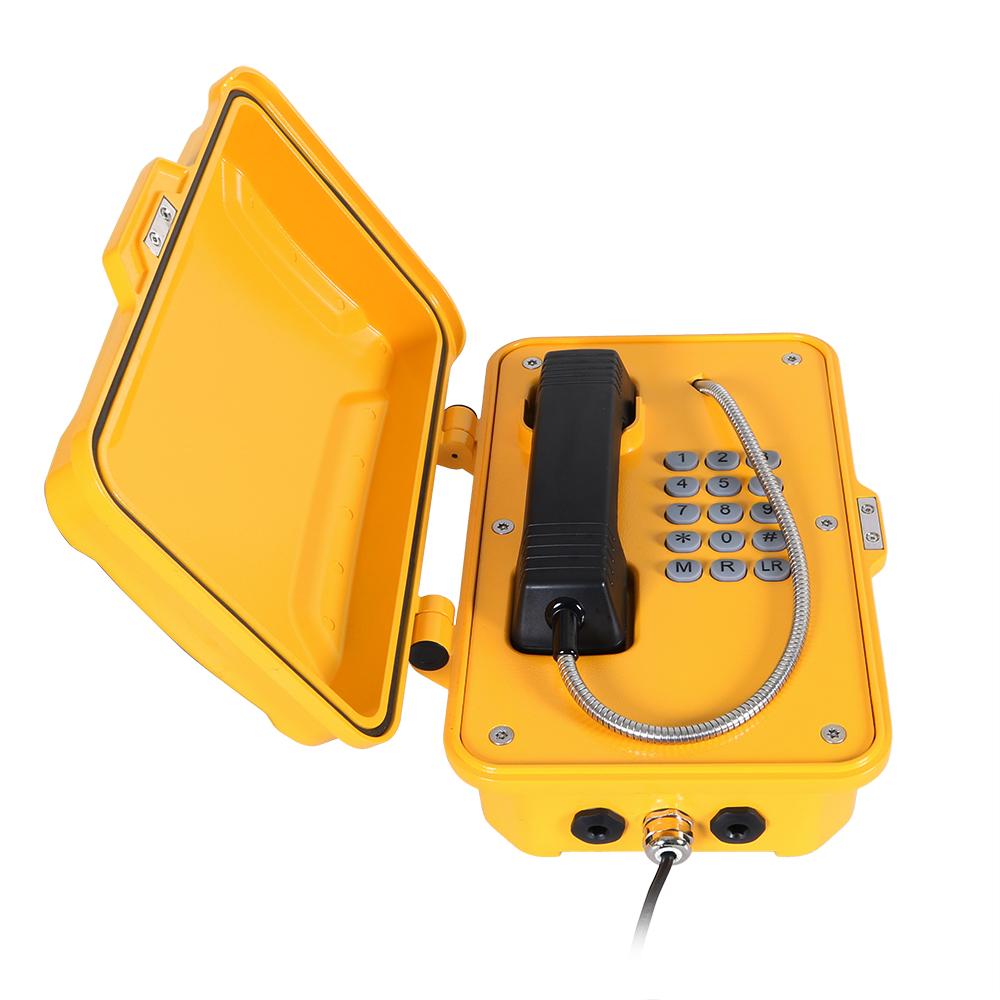

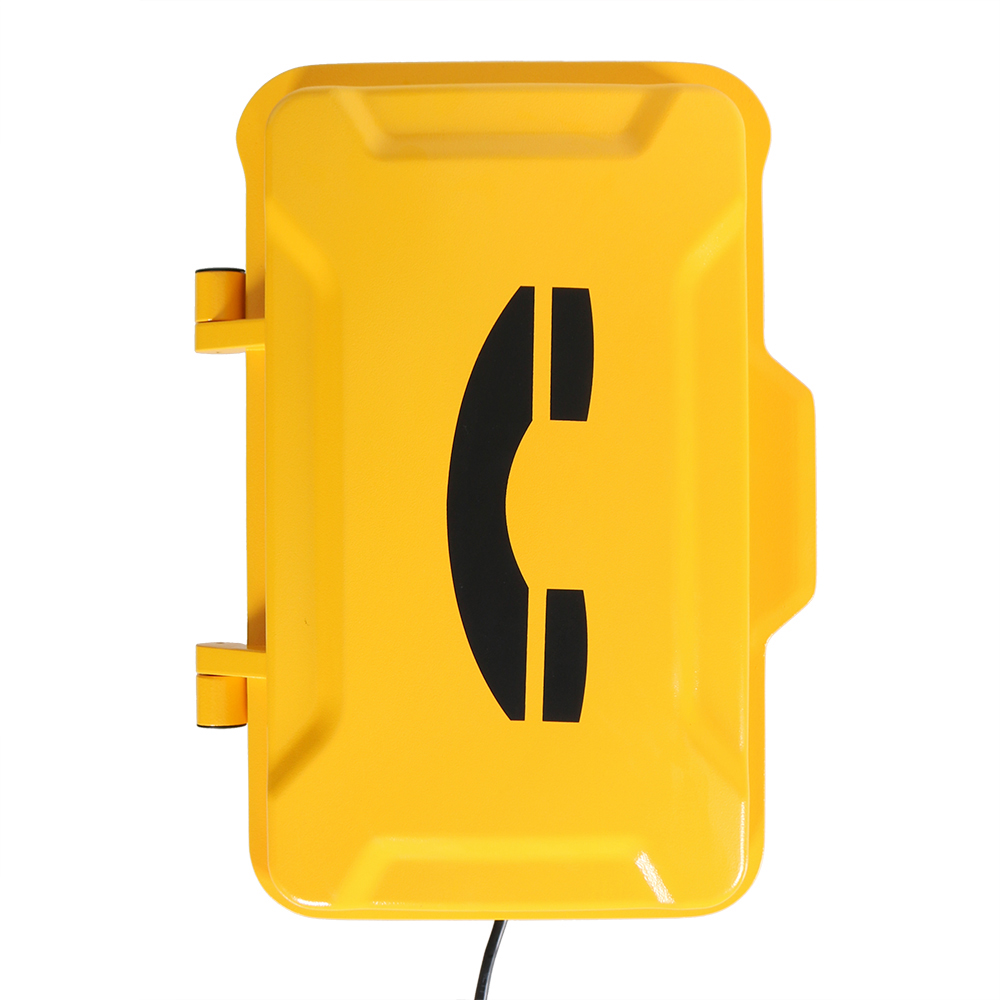

With door cover, supports wall mounting with mounting bar
Phone line powered

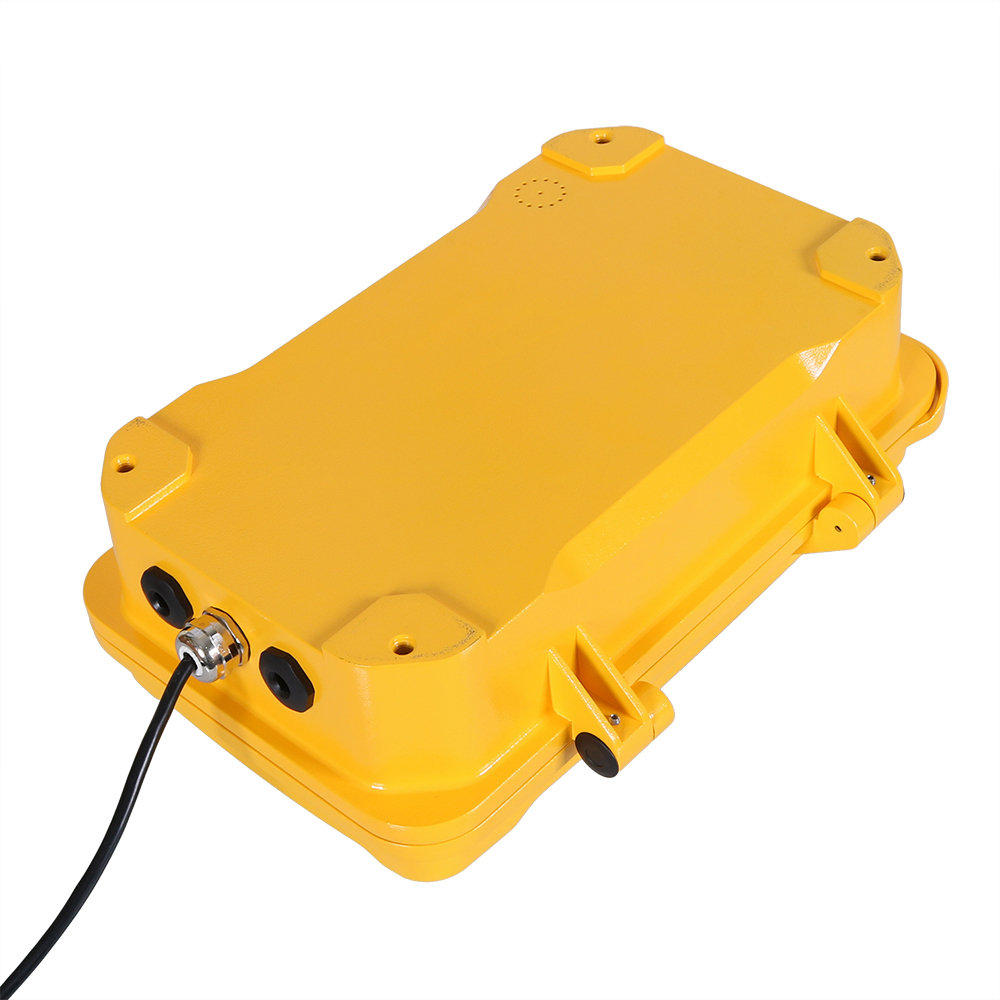

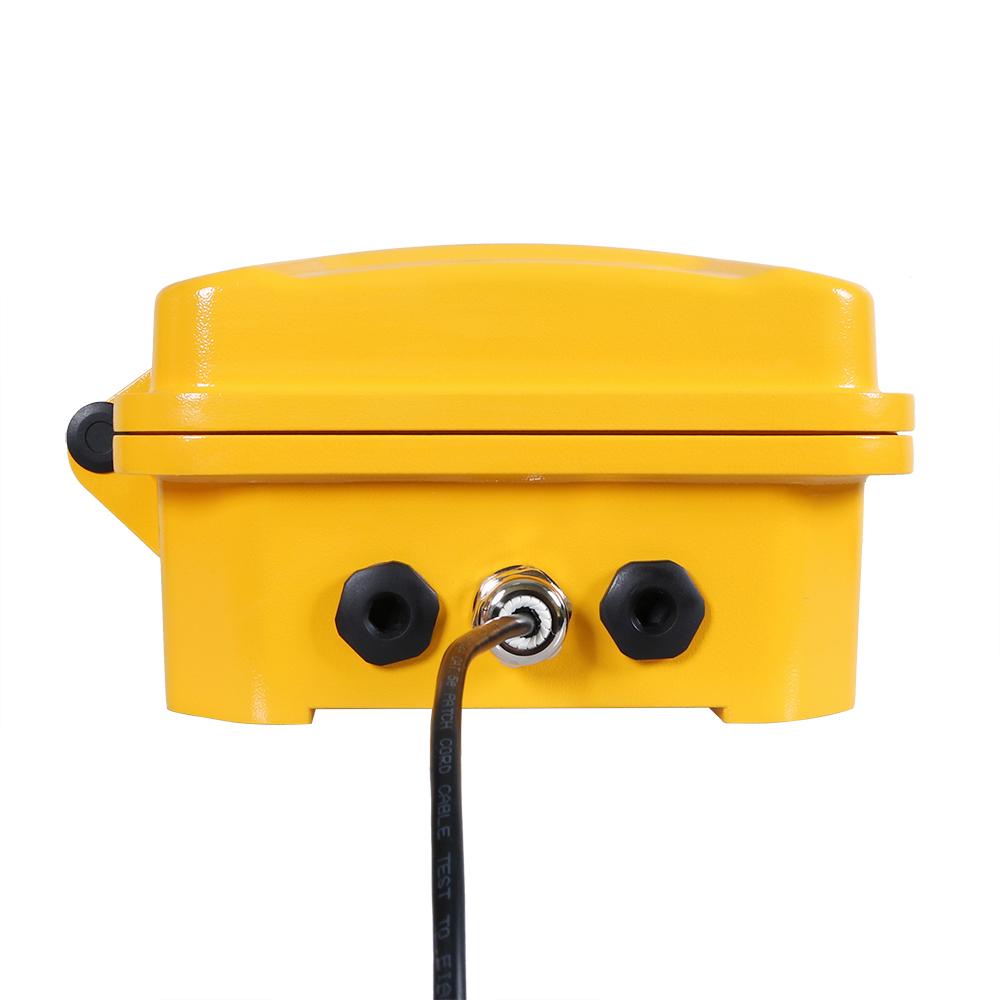

Wiring access, 3xM20 cable gland entry points

IP67 Weatherproof Telephone Description

JR101-FK Waterproof Industrial Telephone has great stability and strong anti-interference ability, the phone supports full duplex communication and two-way communication. The telephone is designed according to the stability requirements of minus 40 degrees to 75 degrees above zero, and its technical index is at the international leading level. The waterproofing performance of the phone is up to IP67 and is suitable for wet, extreme temperature, and bad weather environment use.

It was developed for public and industrial areas requiring a virtually indestructible telephone. The housing is made of die-cast aluminum alloy with a weatherproof enclosure and an exterior polyurethane coating, ensuring resistance to humidity, dust, vibration, shock, extreme temperatures, saltwater exposure, and vandalism.

IP67 Weather-resistant Emergency Telephone Applications

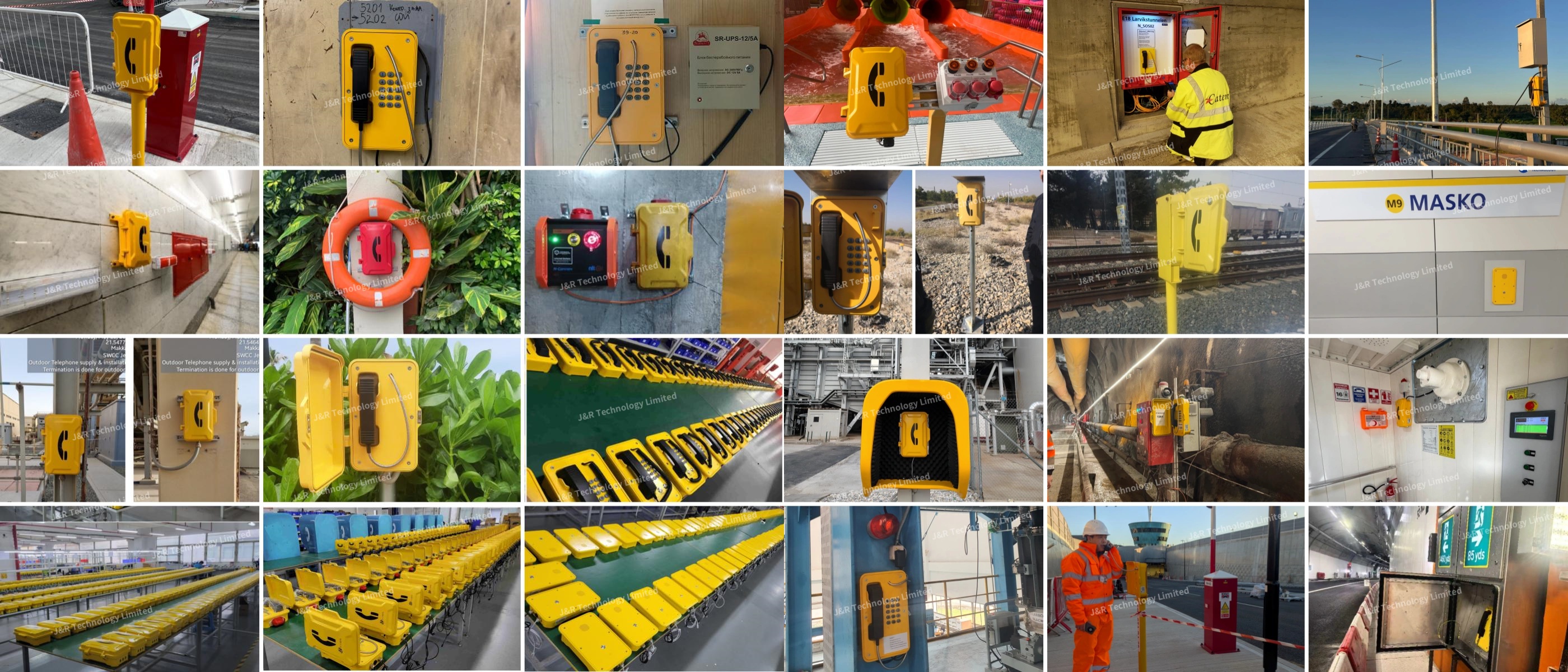

Options analog, SIP/VoIP, 4G version waterproof telephone adaptable outdoor public areas, highways, underground tunnels and mining sites, offshore wind farms, production floors, chemical processing plants, power stations, and heavy lifting machinery such as quayside container cranes, RTGs, and bulk-material ship loaders.

IP66–67 Water Protection Grade

Die-cast aluminum alloy body with IP66/IP67 rating, IK10 impact resistance, and corrosion-resistant hardware, withstanding -40°C~75°C, dust, moisture and mining harsh conditions.

Superior Noise Reduction

Advanced noise reduction filters out mining ambient noise such as mechanical and equipment sounds, ensuring clear on-site and dispatch communication.

Multi-scenario Adaptability

Fulfills underground and on-site emergency communication and dispatching requirements across diverse mining operation scenarios.

Broadcast & Alarm Integration

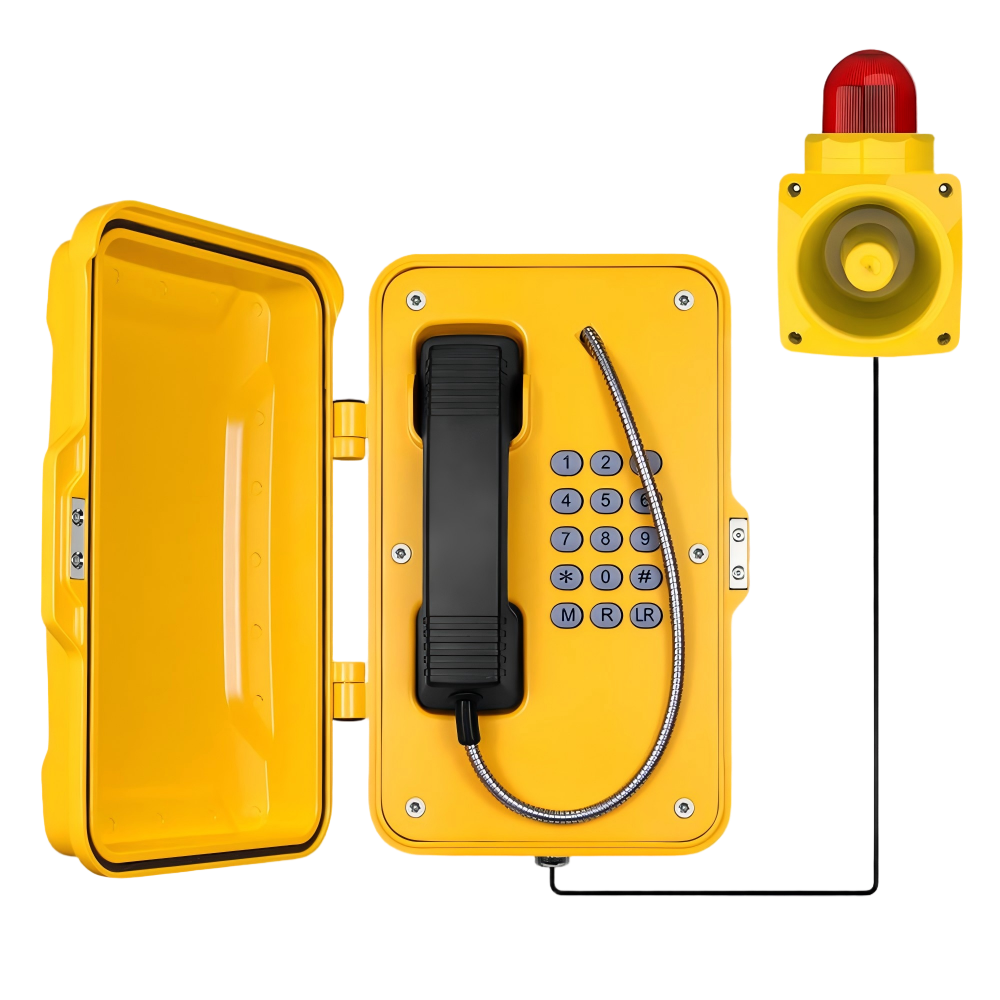

Supports integration with external audible and visual alarm beacons for clear call alerts in noisy mining environments.

Applications

Topology Diagram Click to Compare

Analog to PABX / PSTN

Analog via Voice Gateway (SIP)

Analog telephone connects directly to the PABX and calls outside lines through the PSTN. Suitable for traditional analog-based systems.

Analog telephone connects to a voice gateway, converting analog signals into SIP for integration with SIP-based communication systems.

Analog Telephone to PABX and PSTN Topology

Analog Telephone via Voice Gateway SIP Topology

Product Video

Technical Specifications

Analog Specification
Power supply	Drawn from telephone line
Operating voltage	24 VDC to 65 VDC
Operating current	20 mA DC to 100 mA DC
Ringer operating voltage	48 VAC to 90 VAC (calling frequency 21 to 54 Hz)
Ringing volume	80 dB (A) @ 1 meter
Dialing method	PD or DTMF mode can be set via the menu. DTMF mode in accordance with ITU-T recommendation Q.23
Lightning / Transients	Protection to ITU-T K.21 enhanced levels
Programming	It can be programmed remotely via DTMF tones or the keypad
Technical Specifications
Compatible with all the standard PABX systems
Remote programming allows you to manage your network from a central location
Programmable auto hang-up timer
Supports automatic dialing with delay after picking up the phone
Supports scheduled dialing to the central control phone to detect whether the phone is working properly
Supports MIC mute function
Supports call transfer
Supports the telephone line to power external light fixed on the top (no external power supply needed)
Supports one relay to remotely control external devices
Can be adapted according to the model of the Analog PABX to support the sequential calling function
Operating temperature -40˚C to 65˚C / Storage temperature -40°C to 75°C
M.T.B.F. exceeds 50,000 hours under normal operating conditions
