More Details About IP Hotline Industrial Waterproof Phones

3G/4G Waterproof Emergency Telephone for Outdoors

Technical Parameters

3G Version
Power Supply12V DC
Power Consumption-Idle: 0.3W
-Active: 1.5W
Communication TypeFull duplex
Ringer volume90~95dB(A) at a distance of 1 m
Program MethodRemote programming by SMS
FrequencyA version:

– Dual-Band WCDMA/HSDPA 850/1900MHz
– Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

E version:

– Dual-Band UMTS/HSDPA 900/2100MHz
– Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

J version:

– Dual-Band UMTS/HSDPA 850(800)/2100MHz
– Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

Ambient conditions
Protection type IP 67 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C
Package

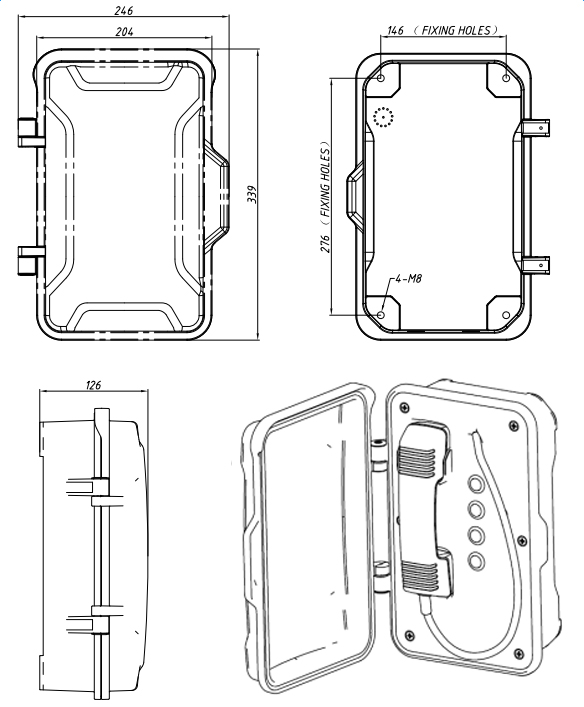

Unit Size:   339*246*124 mm (H *W * D)
Carton Dimension:   200 * 300 *440 mm (H * W * D)
Packaging materials:   pearl cotton, carton
Net Weight:   6 KG
Gross weight:   7 KG



Main Features:

  • – Available in 3 versions (Analog, SIP/VoIP, 3G/4G)
    – Aluminum alloy die-casting body
    – Vandal resistant handset and armored cord
    – Weather proof protection to IP67
    – Three buttons can programmable for auto-dial

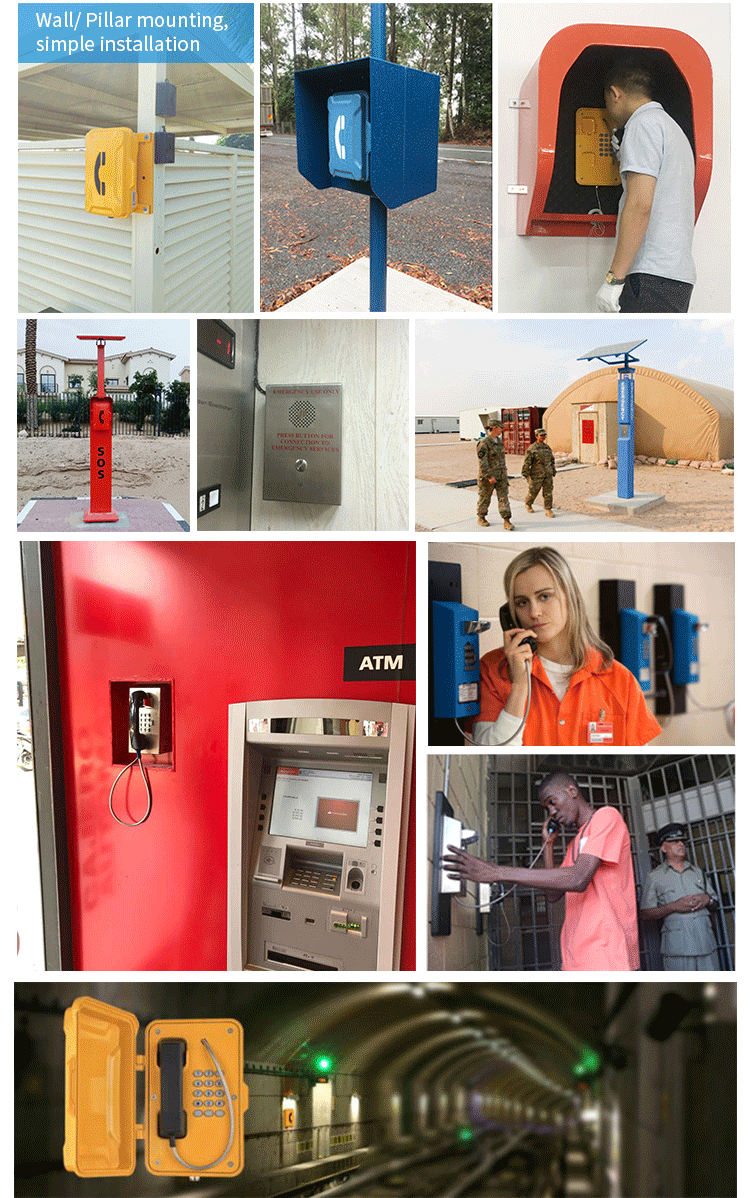

    – Wall/ Pillar mounting, simple installation
    – Inductive coupler fitted as standard for hard of hearing
    – Phone line power (Analog)
    – External power supply or PoE (SIP-VoIP)
    – RJ45 port for SIP phone
    – CE, FCC, ISO9001, RoHS compliant





Applications

This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations,

Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants,

Power plants and relatedheavy duty industrial application, etc.
