Features
★ Rugged and artistic
★ Vandal resistant metal button
★ Protection to ITU-T k.21 enhanced levels
★ Support programmable for speed dial
★ Single or Dual button autodial options withremote programming

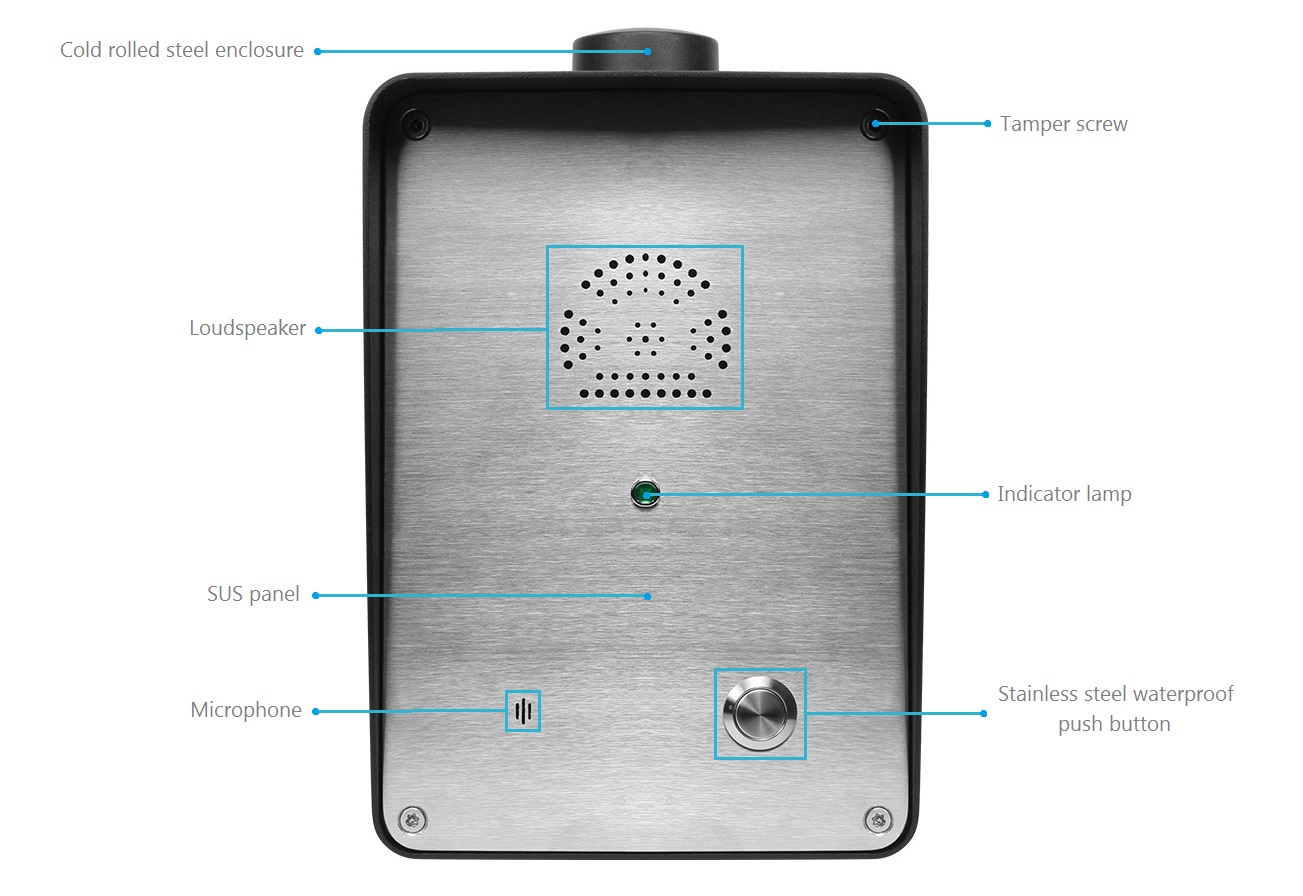

Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.
| Casing Material | Cold rolled steel body |
| Colors | Black, YELLOW, GREY |
| Handset Material | No handset |
| Keypad | No keypad |
| Temperature | Operating: -30°C to +70°C Storing: -40°C to +75°C |
| Weather Resistance | IP65 |
| Ringing Tone | Shrill warble tone 80 dBA @ 1 metre typical |
| Hook switch | Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 1 kg depending on option |
Technical Specification
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | – 80dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | – 90~95dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
Packing & Delivery

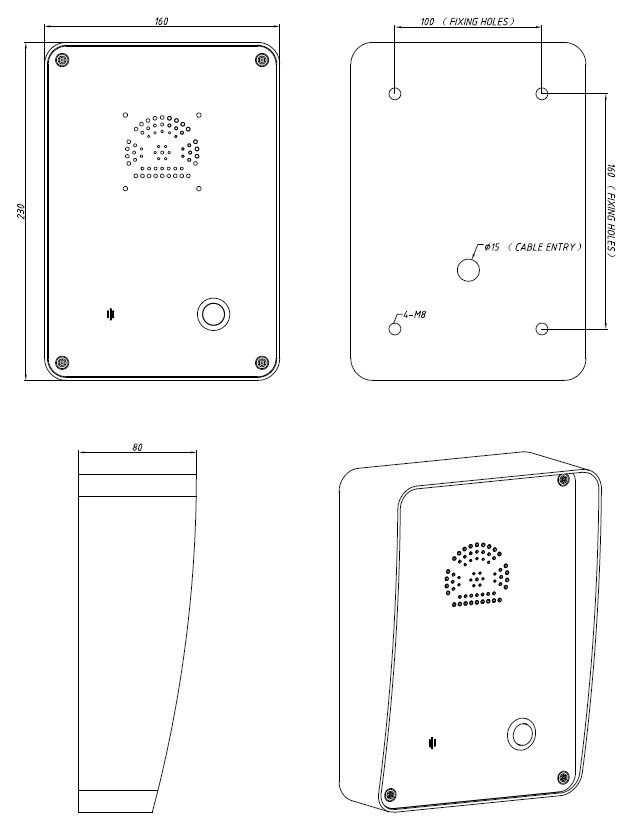

| Unit Size | 230 *160 *80 (mm) |
| Carton Size | 250 *180 *100 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 2.5 KG |
| Gross Weight | 3 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
Applications

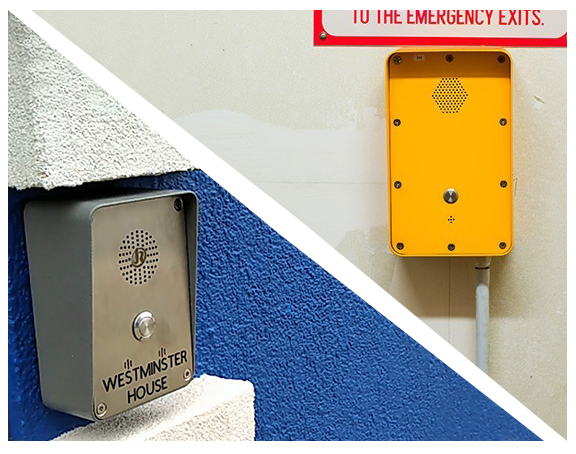

DTMF PoE GSM Metallic Public Telephone usaged in roadside, taxi station, park, mall, etc. Pillar mounted or wall mounted are all available.
