More Details About VoIP Lift Emergency Telephone



Product Description

  Casing MaterialStainless steel body
  ColorsRED, YELLOW, GREY
  Handset MaterialNo handset
  KeypadRugged metal keypad

(Push button: Stainless steel button with IP65 rate)

  TemperatureOperating: -30°C to +65°C

Storing: -40°C to +75°C

  Weather ResistanceIP65
  Ringing ToneShrill warble tone 80 dBA at 1 metre typical
  Hook switchNo hook switch
  M.T.B.F.Calculated to have an M.T.B.F. in excess of 50,000 hours using
  WeightUp to 2.5 kg depending on option



Heavy Duty, Vandal Resistant Metal Telephones







Technical Specification

 Analogue Version
  Power SupplyFrom the analogue telephone network
  Supply Voltage24 VDC to 65 VDC
  Supply Current20 mA DC to 100 mA DC
  Ringer Volume– 80dB(A)  at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing MethodDTMF mode in accordance with ITU-T recommendation Q.23.



 SIP Version
  Power SupplyPoE or 12V DC
  Power Consumption-Idle:1.5W
-Active:1.8W
  SIP ProtocolSIP 2.0 (RFC3261)
  Support CodecG.711 A/U, G.722 8000/16000, G.723, G.729
  Communication TypeFull duplex
  Ringer Volume– 90~95dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection typeIP 66 as per EN60529
Operating temperature25°C to +65°C
Storage temperature-35°C to +75°C

Heavy Duty, Vandal Resistant Metal Telephones

Robuste Telephone, Multi-function Telephone

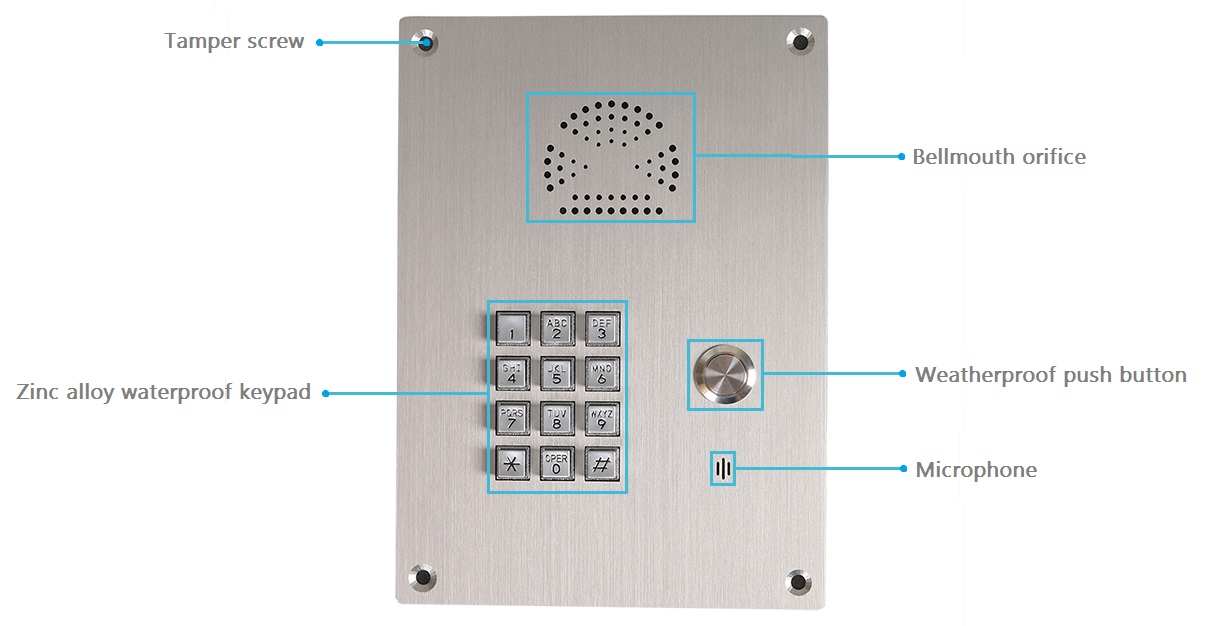

Features

Heavy Duty, Vandal Resistant Metal Telephones

Stainless steel body – Strong impact resistance

Handsfree speakerphone – push button to connect rescue center

In wall mounting – simple installation

Vandal resistant full keyboard – can be programmed

Weather proof protection – up to IP65

Standard Analogue phone or SIP phone

Transients – Protection to ITU-T k.21 enhanced levels

CE,FCC,ROSH compliant – quality assurance

Flexible dial map, support hot-line





Applications

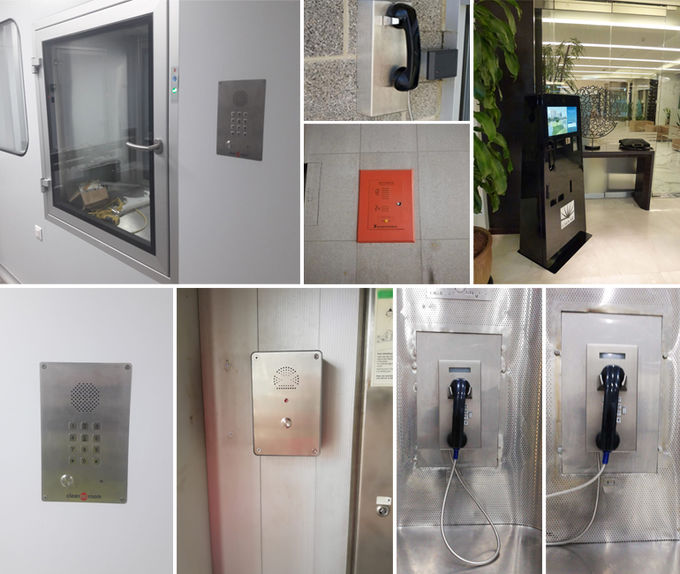

JR308-FK VoIP Lift Emergency Telephone is suitable for use in airport, hospital, bank, ATM, campus, lift/elecator , clean room, outside or outside building, etc.

Rugged Outdoor Weatherproof Telephone





Packing & Delivery

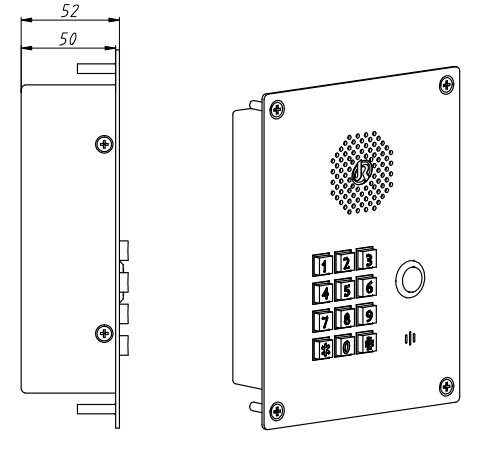

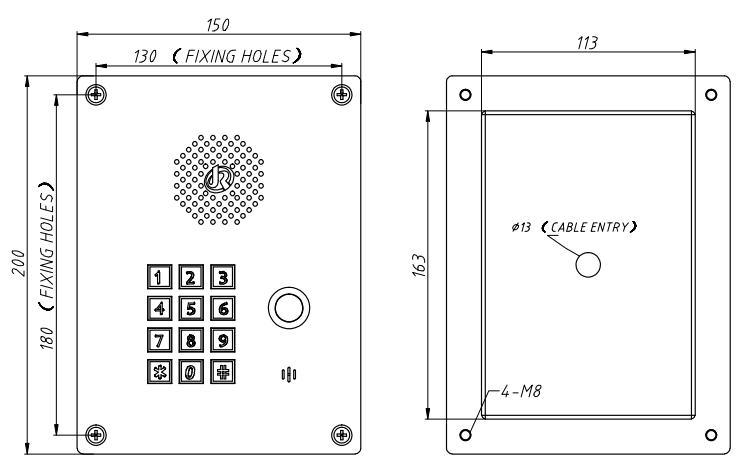

  Unit Size200 *150 *52 (mm)
  Carton Size340 *235 *165 (mm)
  Packaging MaterialsPearl cotton, carton
  Net Weight2 KG
  Gross Weight3 KG



PortShenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets)12-500>500
Est. Time(Days)225To be negotiated





Customized Accessories

Heavy Duty, Vandal Resistant Metal Telephones

J&R provide LOGO printing and accessories customization services.

We will also provide suitable solutions according to the needs of customers.



      HOOK FUNCTION: Magnetic hooks for choice

      KEYBOARD SHAPE: Round buttons and square buttons for choice

      INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

      MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice

      HADSET CORD: Black curly handset cord or stainless steel spiral cord



If you have any custom requirements, please feel free to contact us.





Our Services

Heavy Duty, Vandal Resistant Metal Telephones

 ODM & OEM products or solutions

Sample order is greatly welcomed

We will reply your inquiry within 12 hours

Update the productive process and show the packing details

After delivered the goods, we will track the products for you once every two days, until you get the products.

When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.

J&R telephone comes with a full two-year warranty.
