Model Number: JR313-SC

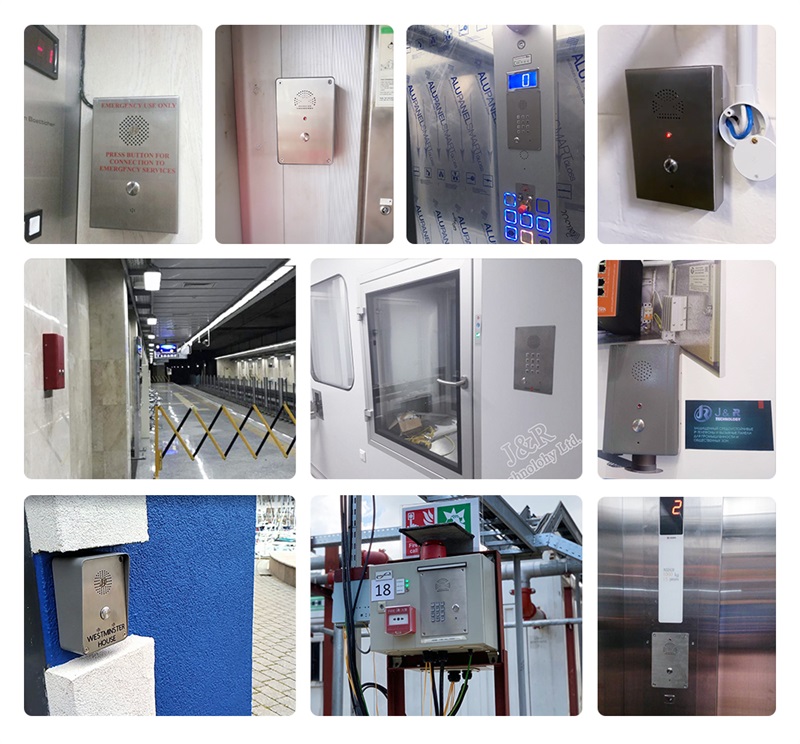

JR313-SC Emergency Telephone and Intercom System is designed to meet the needs of client who experience loss through vandalism. Ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.
Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
MAIN FEATURES of Emergency Telephone and Intercom System
Product Description
| Casing Material | Cold rolled steel body |
| Colors | RED, YELLOW, GREY |
| Handset Material | No handset |
| Keypad | No keypad |
| Temperature | Operating: -30°C to +70°C
Storing: -40°C to +75°C |
| Weather Resistance | IP 55 |
| Ringing Tone | Shrill warble tone 80 dBA at 1 metre typical |
| Hook switch | No hook switch |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 1 kg depending on option |
Technical Specification
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | – 80dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23 |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | – 90~95dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
Features
★ Robust housing, constructed of stainless steel
★ Vandal resistant metal button and rugged keypad
★ Hands free operation
★ Weather proof protection: up to IP 65
★ Flush mounting, simple installation
JR308-FK Multi-function Intercom more commonly used in parking lots, roadside, railway/metro platforms, highway, police stations, stadiums, outside building, etc.
A speed dial of the phone helps the user to call for help to the help center in time, making the help convenient and quick.
Packing & Delivery
| Unit Size | 170 *130 *60 (mm) |
| Carton Size | 200 *140 *100 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 0.8 KG |
| Gross Weight | 1 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
J&R provide LOGO printing and accessories customization services.
We will also provide suitable solutions according to the needs of customers.

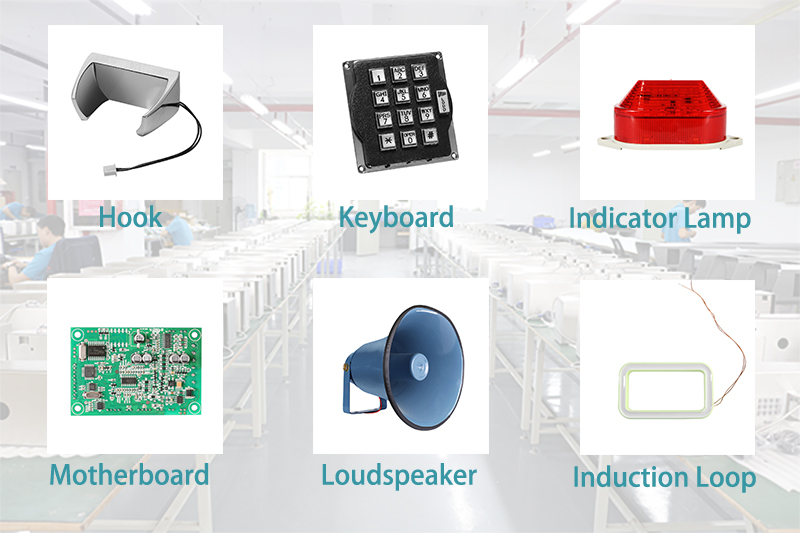

HOOK FUNCTION: Magnetic hooks for choice
KEYBOARD SHAPE: Round buttons and square buttons for choice
INDICATOR LAMP COLOR: Red, yellow, blue, green for choice
MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice
HADSET CORD: Black curly handset cord or stainless steel spiral cord
If you have any custom requirements, please feel free to contact us.
