More Details About Rugged SIP Call Box







Product Description

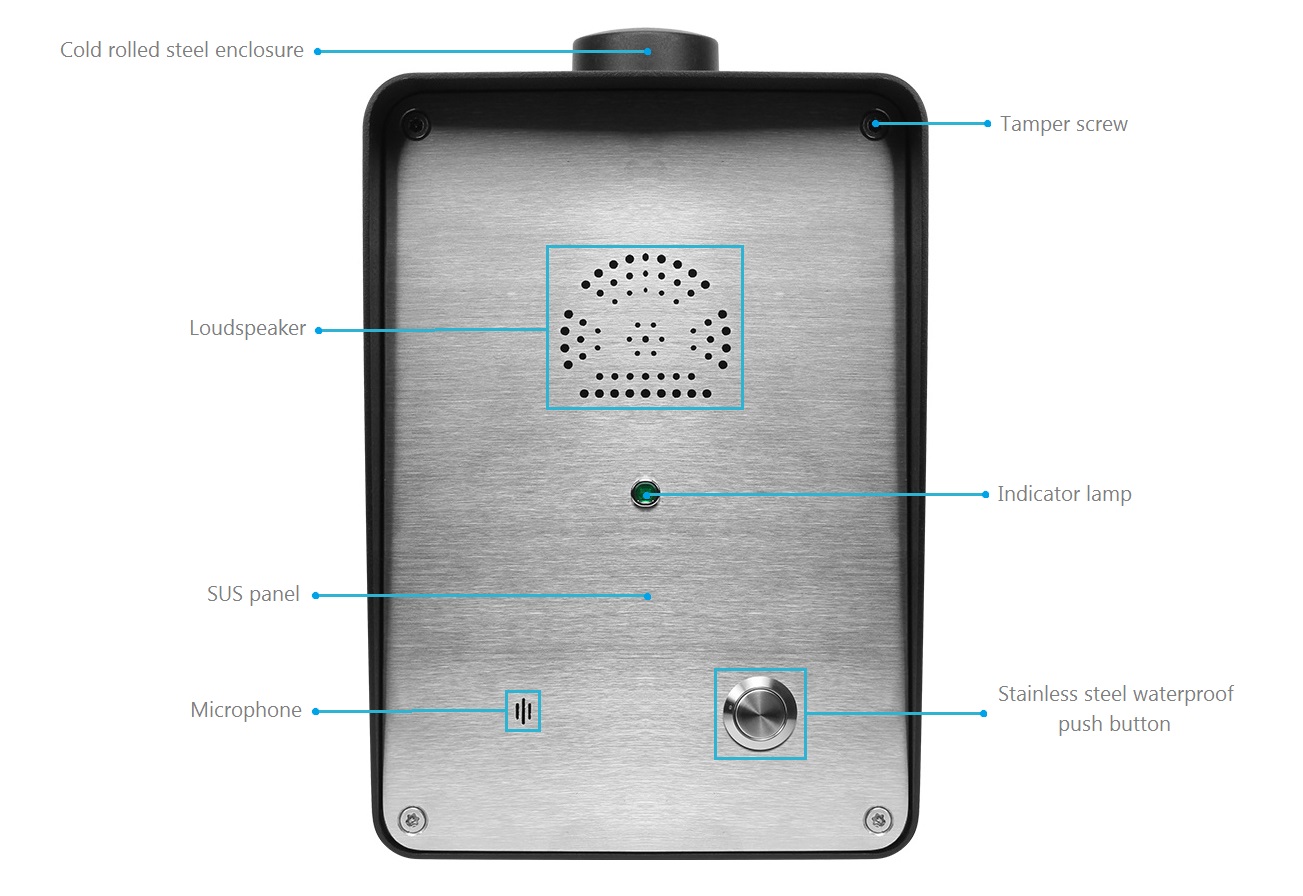

  Casing MaterialCold rolled steel enclosure and SUS panel
  ColorsRED, YELLOW, GREY
  Handset MaterialNo handset
  KeypadNo keypad
  TemperatureOperating: -30°C to +70°C

Storing: -40°C to +75°C

  Weather ResistanceIP65
  Ringing ToneShrill warble tone 80 dBA at 1 metre typical
  Hook switchNo hook switch
  M.T.B.F.Calculated to have an M.T.B.F. in excess of 50,000 hours using
  WeightUp to 4 kg depending on option





Technical Specification

Heavy Duty, Vandal Resistant Metal Telephones

 Analogue Version
  Power SupplyFrom the analogue telephone network
  Supply Voltage24 VDC to 65 VDC
  Supply Current20 mA DC to 100 mA DC
  Ringer Volume– 80dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing MethodDTMF mode in accordance with ITU-T recommendation Q.23



 SIP Version
  Power SupplyPoE or 12V DC
  Power Consumption-Idle:1.5W
-Active:1.8W
  SIP ProtocolSIP 2.0 (RFC3261)
  Support CodecG.711 A/U, G.722 8000/16000, G.723, G.729
  Communication TypeFull duplex
  Ringer Volume– 90~95dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)



 Ambient conditions
  Protection TypeIP 66 as per EN60529
  Operating Temperature-30°C to +70°C
  Storage Temperature-40°C to +75°C





Features

Heavy Duty, Vandal Resistant Metal Telephones

★ Analog/SIP telephone

★ Vandal resistant metal button★ Hands free operation

★ On wall mounting, simple installation

★ Weather proof protection: up to IP65

★ Single or Dual button autodial options with remote programming

★ Phone line or 12V DC powered
★ CE,FCC,ROSH compliant
★ Robust housing, constructed of cold rolled steel enclosure and stainless steel face plate



Applications

JR305-SC Rugged Outdoor Weatherproof Telephone more commonly used in parking lots, roadside, railway/metro platforms, highway, police stations, stadiums, outside building, etc.

A speed dial of the phone helps the user to call for help to the help center in time, making the help convenient and quick.

Rugged SIP Call Box Weatherproof Telephone

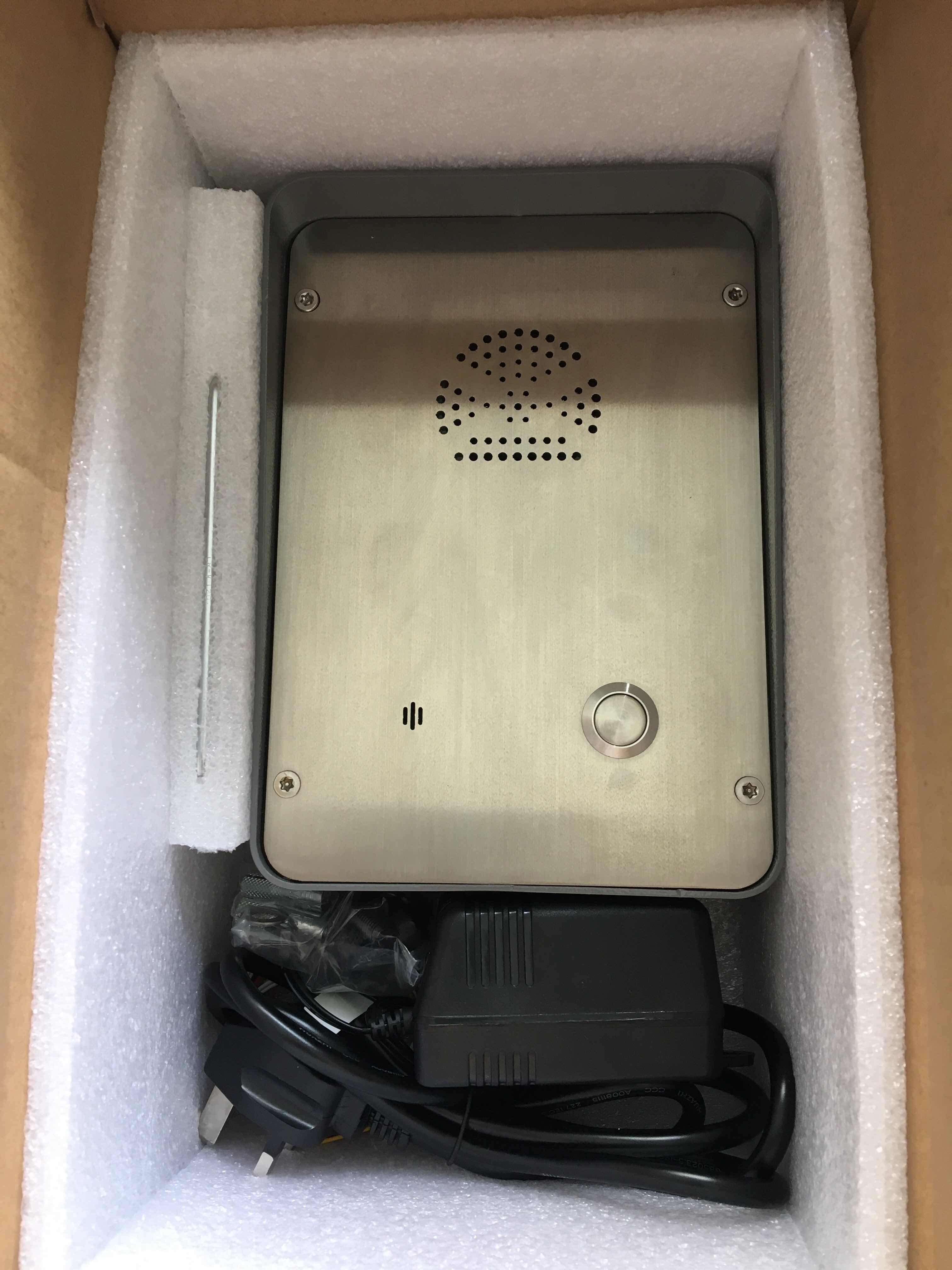

Packing & Delivery

Heavy Duty, Vandal Resistant Metal Telephones

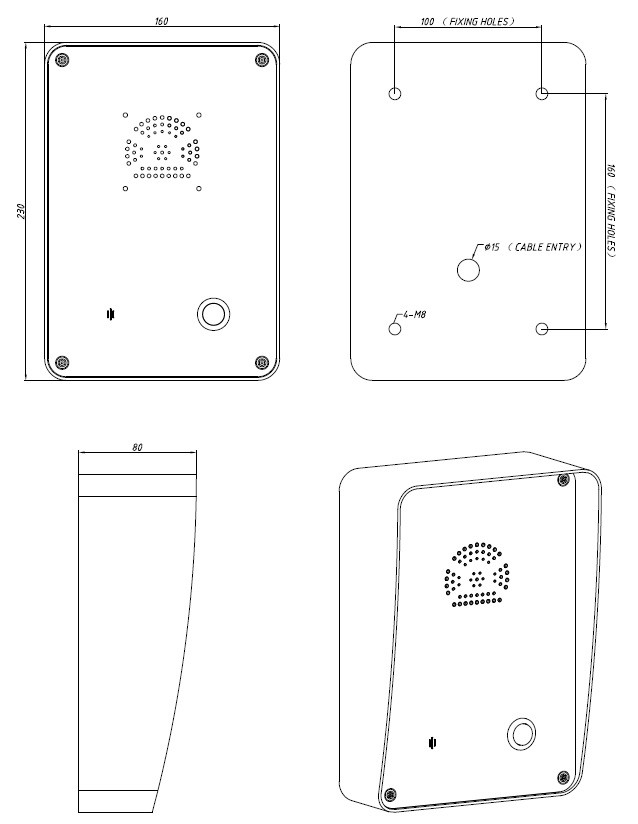

  Unit Size230 *160 *80 (mm)
  Carton Size250 *180 *100 (mm)
  Packaging MaterialsPearl cotton, carton
  Net Weight2.5 KG
  Gross Weight3 KG

Heavy Duty, Vandal Resistant Metal Telephones

PortShenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets)12-500>500
Est. Time(Days)225To be negotiated


Customized Accessories
Heavy Duty, Vandal Resistant Metal Telephones

      J&R provide LOGO printing and accessories customization services.

We will also provide suitable solutions according to the needs of customers.



      HOOK FUNCTION: Magnetic hooks for choice

      KEYBOARD SHAPE: Round buttons and square buttons for choice

      INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

      MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice

      HADSET CORD: Black curly handset cord or stainless steel spiral cord

If you have any custom requirements, please feel free to contact us.
